Available For Sale: (* = in our inventory)Stencil / Screen Printers Dispensers PlacementFeeders and Accessories Reflow SolderingAqueous Cleaners Board HandlingThrough Hole and MiscellaneousInspection and Rework Looking to Buy!Stencil / Screen Printers

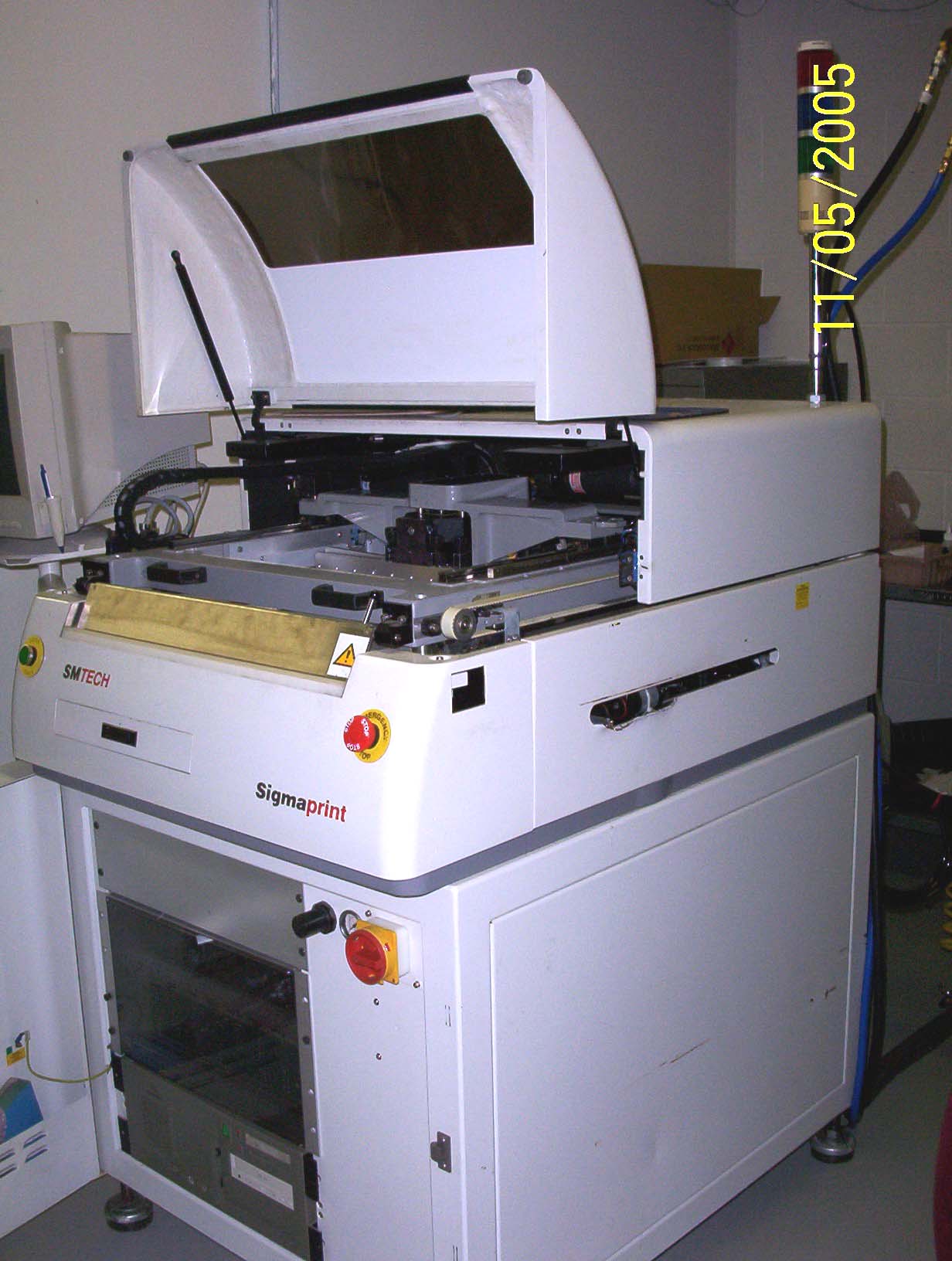

Vintage: 1994 Width Adjustment: Fixed front rail, motorized rear 50 to 508 mm Tooling Support: Magnetic support pillars / Auto flex Registration: Vision Screen Frame: 736 x 736mm external 660 x 660 internal Print Area: 510 x 498mm Print Stoke: Automatic Print Speed 10 to 150mm/second Print Pressure: 0 to 20 Kg Print Gap: 0 to 6mm Print modes: Print/print, flood/print, print/flood Squeegee types: Single tailing/diamond, double trailing/diamond Screen change over: Motorized Screen adjustment: X/Y + or – 10mm 0+/- 2 degree Paste Dispense: 10 – 100 mm/sec dispense speed, rate 0 – 100 Screen Cleaning: 0-100 cycles dry or solvent option Underside component clearance: Max 19mm Back to Top
Dual Vision Cameras Under Stencil Wipe V6.03 Software Vacuum Option Power Requirement: Single Phase 6 Amp Back to TopDispensers
Back to TopPlacement
Back to TopFeeders and Accessories
Back to TopReflow
Back to TopSoldering
N2 machine External fluxing cabinet USI Ultrasonic reciprocating spray fluxer Extended rails Finger conveyor Qty of three Vecta heat forced convection preheaters Dual wave system Dual Topside IR Pre-heaters Contour N2 wave Rotary N2 chip wave Auto width adjust Cast Iron pot Motorized roll out solder pot w/ jacking stand Computer controlled Back to TopAqueous Cleaners
Guillotine type 208 single phase Clean cycle is agitation and ultrasonic Spray bar for the rinse off cycle Maximum Stencil size is 40 by 32 inches Year is estimated to be 1995-6 Back to TopBoard Handling
Back to TopThrough Hole and Miscellaneous
Back to TopInspection and Rework
Board capability is 22" deep to 24" wide or wider No need for compressed air and runs on a 110v circuit Dual Head- one for vision alignment by way of a split prism Placement accuracy is +/- 1 mil Max part size is 47mm Pre-heater(1100 watts) and the reflow hear (450watts) Control box can store 100 profiles. 50 remove and 50 replace
Back to TopLooking to Buy!
Back to TopPLEASE BE ADVISED THIS IS ONLY A PARTIAL LIST OF EQUIPMENT THAT WE BUY AND SELL. IF YOU ARE LOOKING FOR ANY PARTICULAR EQUIPMENT THAT IS NOT LISTED, LET US KNOW AND WE WILL BE HAPPY TO LOCATE IT FOR YOU. |
||||||||||||||
Sincerely, | ||||||||||||||
Toshiko Kikuzaki | ||||||||||||||
